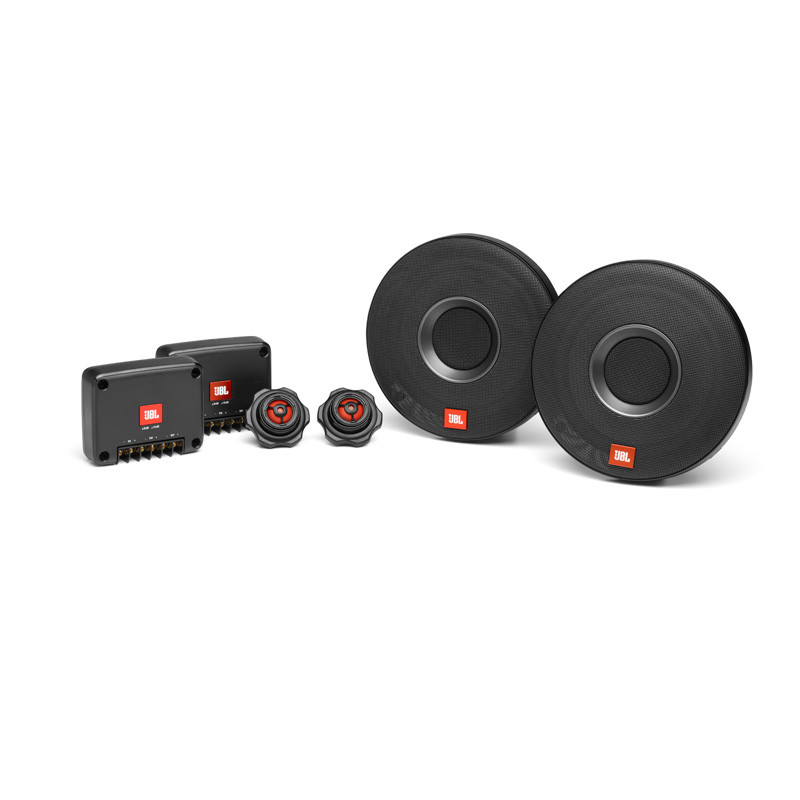

JBL Club 605CSQ 6.5'' (16cm) Set de haut-parleur Compo - Sound Quality

JBL Club 605CSQ 6.5'' (16cm) Compo Set - Sound Quality

16CM 2-WAY
COMPO 285W

Pro Car Audio by JBL.
Club coaxial and component speakers bring JBL pro sound to more vehicles.
Their compact design means they’ll fit into more vehicles than many of our
competitors, and their high sensitivity delivers outstanding performance even
with modestly-powered factory systems. Carbon Fiber Woofer with Plus One™
architecture deliver hard-hitting bass and long performance life. Edge-driven
silk dome tweeters deliver broader and smoother high frequency response,
never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation.

- 6-1/2' (160mm) 2-way Car Speaker, Engineered for Ultimate Sound Quality
- Power Handling: 75W RMS, 225W peak
- Sensitivity (@ 2.83V): 93dB
- Frequency Response: 48Hz – 21kHz
- Nominal Impedance: 3.0 ohms

Features and Benefits

Carbon Fiber Woofer with Plus One™ Architecture for Ultimate Sound Quality
Patented (US patent #7,548,631) Plus One™ cones provide more overall
speaker-cone area than other speakers for the same size, which bring the
louder bass. While the high-end carbon fiber woofer material provide the
accuracy and clear musical character.

Edge-driven Silk Dome Tweeter
Club SQ speakers have edge-driven silk dome tweeter, which delivers a broader
and smoother high frequency response, never-harsh regardless of output level
than more commonly used w-domes.

Adjustable Tweeter Output Level
The Club SQ Speakers offer a tweeter output level control of 0dB or +3dB to
optimize system linearity based on installation location.

Incredibly Y40 Ferrite Magnet for higher sensitivity
The Club SQ Speakers use the Y40 Ferrite Magnet, which can bring higher
sensitivity compared with the commonly Y30 Ferrite magnet.
Starfish™ Tweeter Mounting Adapter
The Club 605CSQ component Speaker system come with the Starfish™
tweeter mounting adapter. The Starfish tweeter mounting adapter allows for
easy installation of the tweeter behind factory grilles and in locations such an
A-Pillar. It also provides six break-off mounting tabs to accommodate many
mounting configurations. The tweeter can be surface- or flush-mounted.
The tweeter can be easily serviced, and doesn’t require removing the whole
assembly.

I-Mount Tweeter Mounting Kit
The I-Mount™ (patent no. 5,859,917) tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes
a flush cup and surface-mount mounting hardware. With a 1-3/4'' cutout and a
1'' mounting depth, installation becomes a snap. This allows the tweeter to be
flush-mounted and can be angled up to ±40 degrees. Locknuts are included to
keep everything in place, and the tweeter can be replaced without removing the
whole assembly.

What's in the box
- 2x Speakers
- 2x Grilles
- 2x Plastic multi-hole adapter rings
- 1x Foam gasket
- 2x Crossovers
- 2x Tweeters
- 2x Flush-mount cups
- 2x Threaded flush-mount adapters
- 2x Surface-mount cups
- 2x Starfish tweeter mounts
- 2x Plastics locking nuts
- 30x Screws
- 8x Speed clips
- 2x Spacers
- 2x Washers
- 2x JBL logo badge
